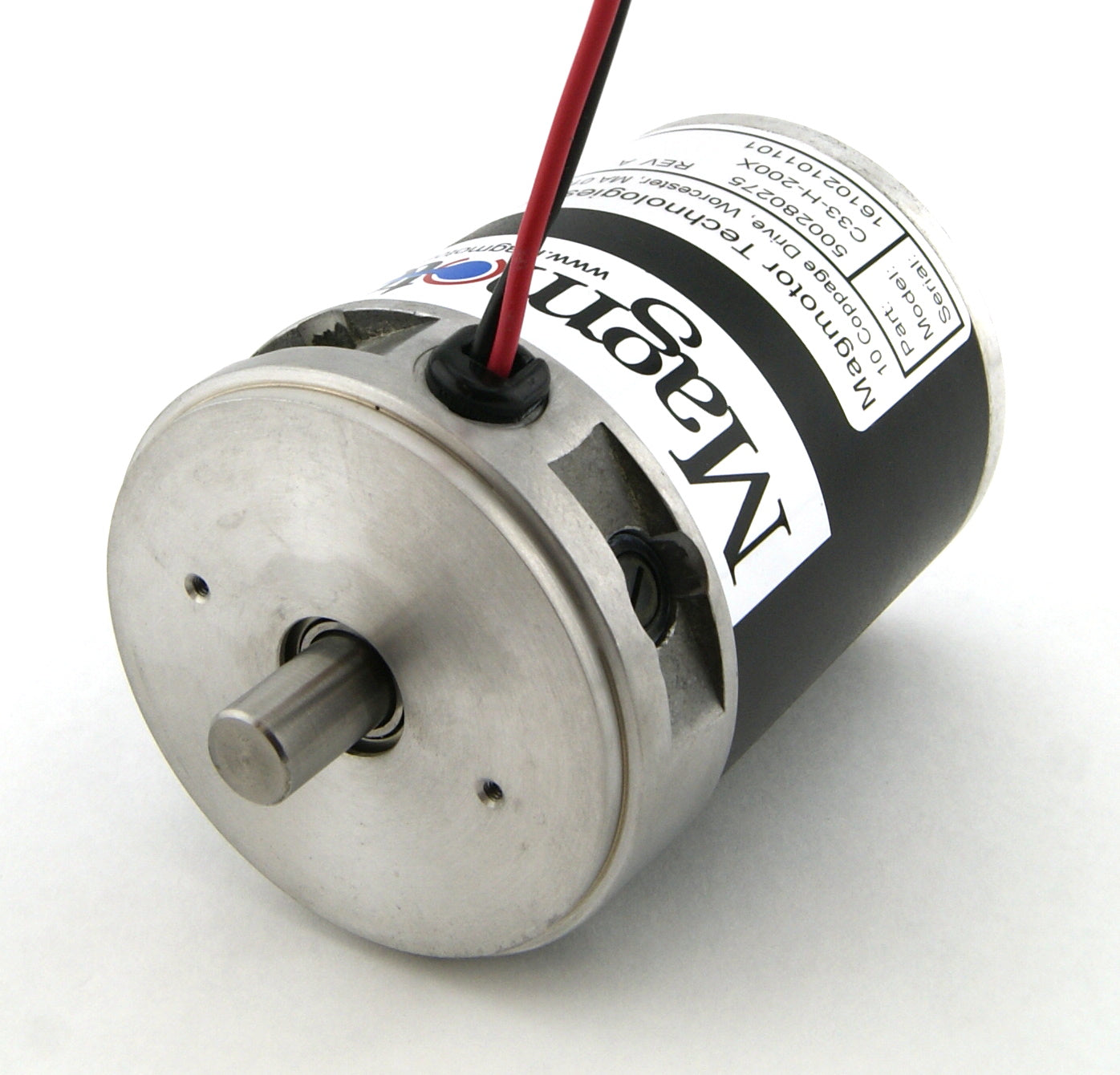

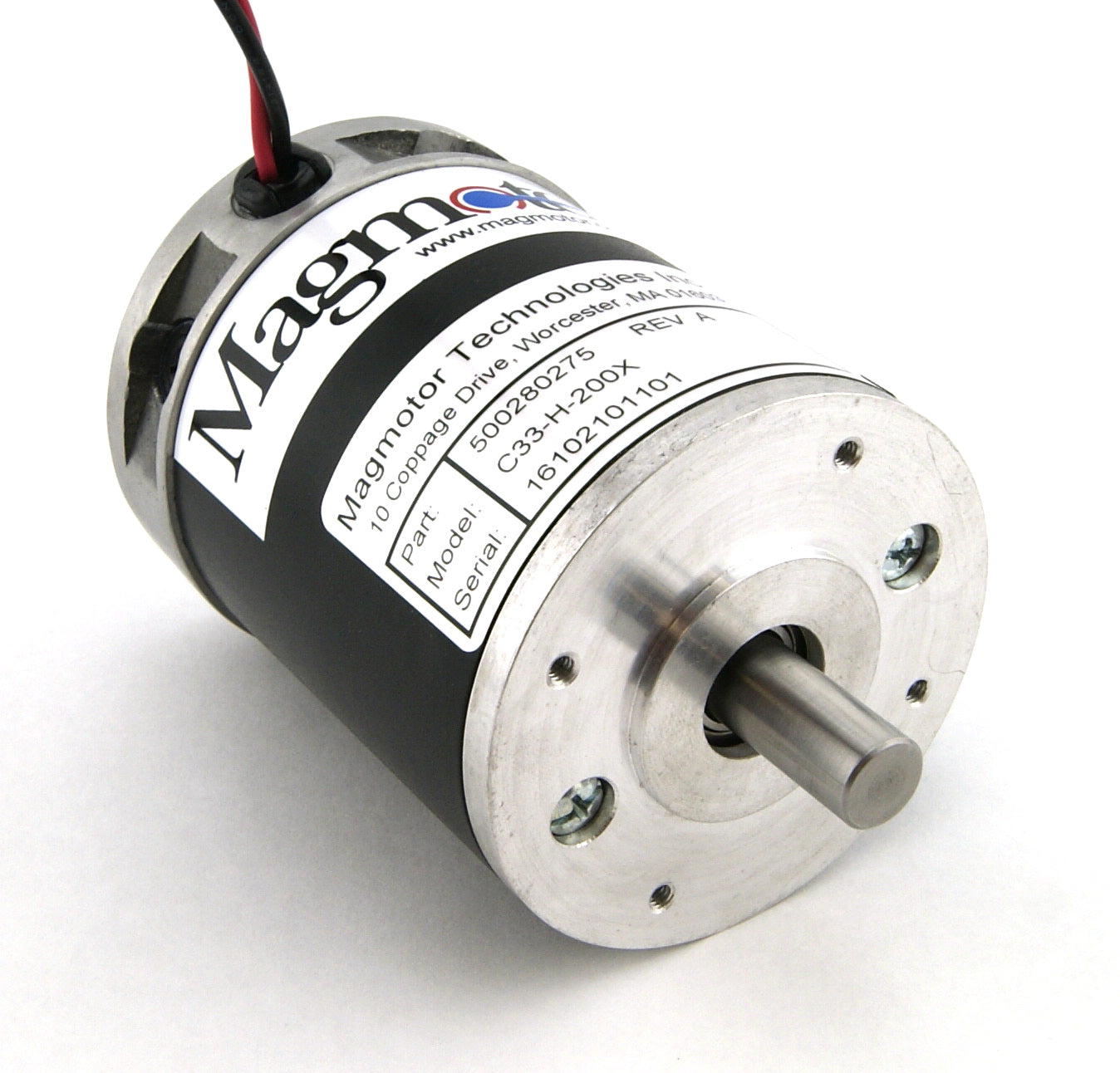

500280275 - BRUSHED MOTOR - 24 to 60 VDC - 45 to 85 oz-in CONT TORQUE - C33-H-200X (NOT A REPLACEMENT FOR PART # 720280102 & 500280096)

500280275 - BRUSHED MOTOR - 24 to 60 VDC - 45 to 85 oz-in CONT TORQUE - C33-H-200X (NOT A REPLACEMENT FOR PART # 720280102 & 500280096)

Regular price $200.00
Regular price $275.00 Sale price $200.00
Sale Sold out
Shipping calculated at checkout.

* * * NOT A REPLACEMENT FOR PART # 720280102 & 500280096 * * *

PLEASE CONTACT US DIRECT FOR THESE REPLACEMENTS



DOWNLOADS:

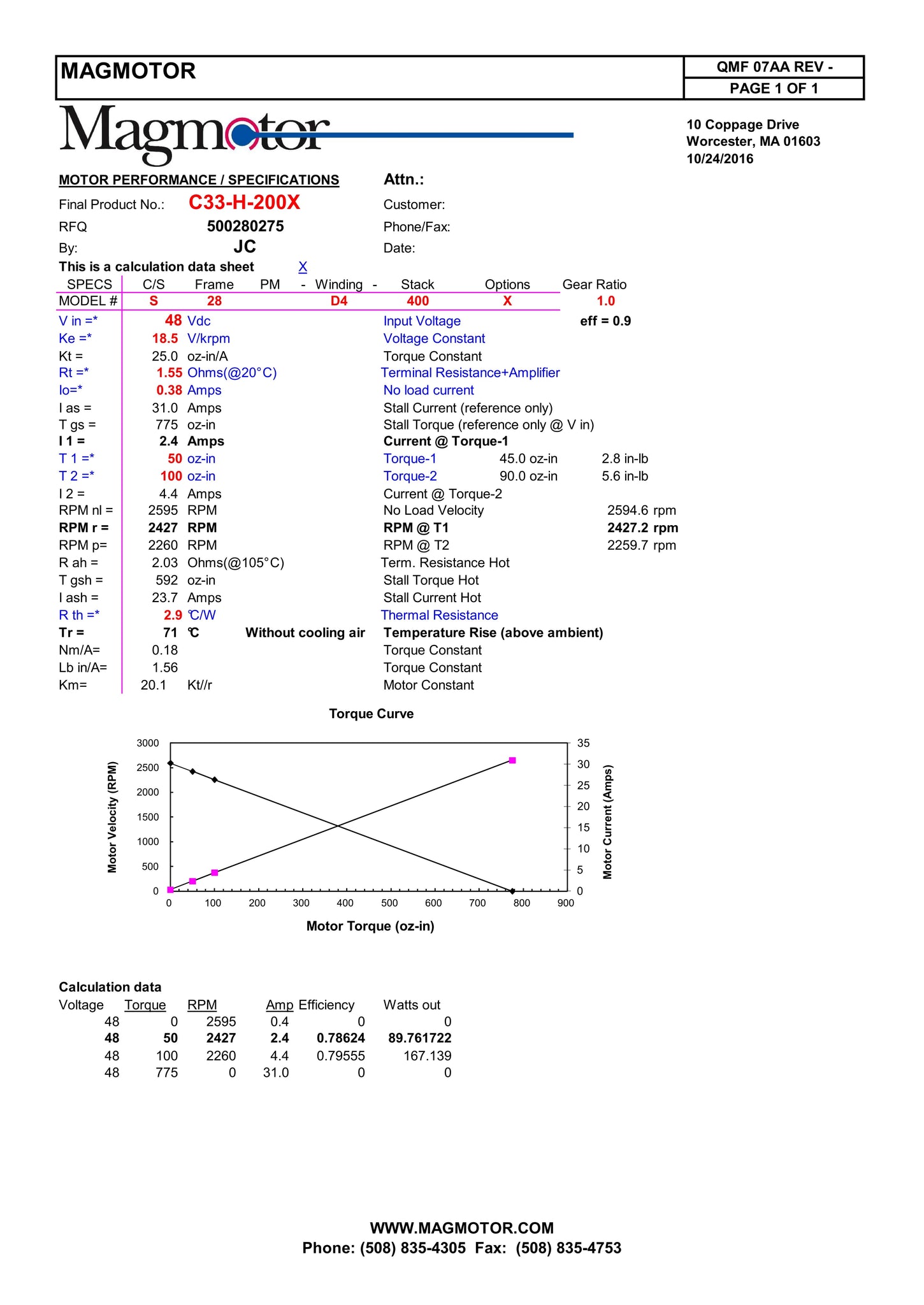

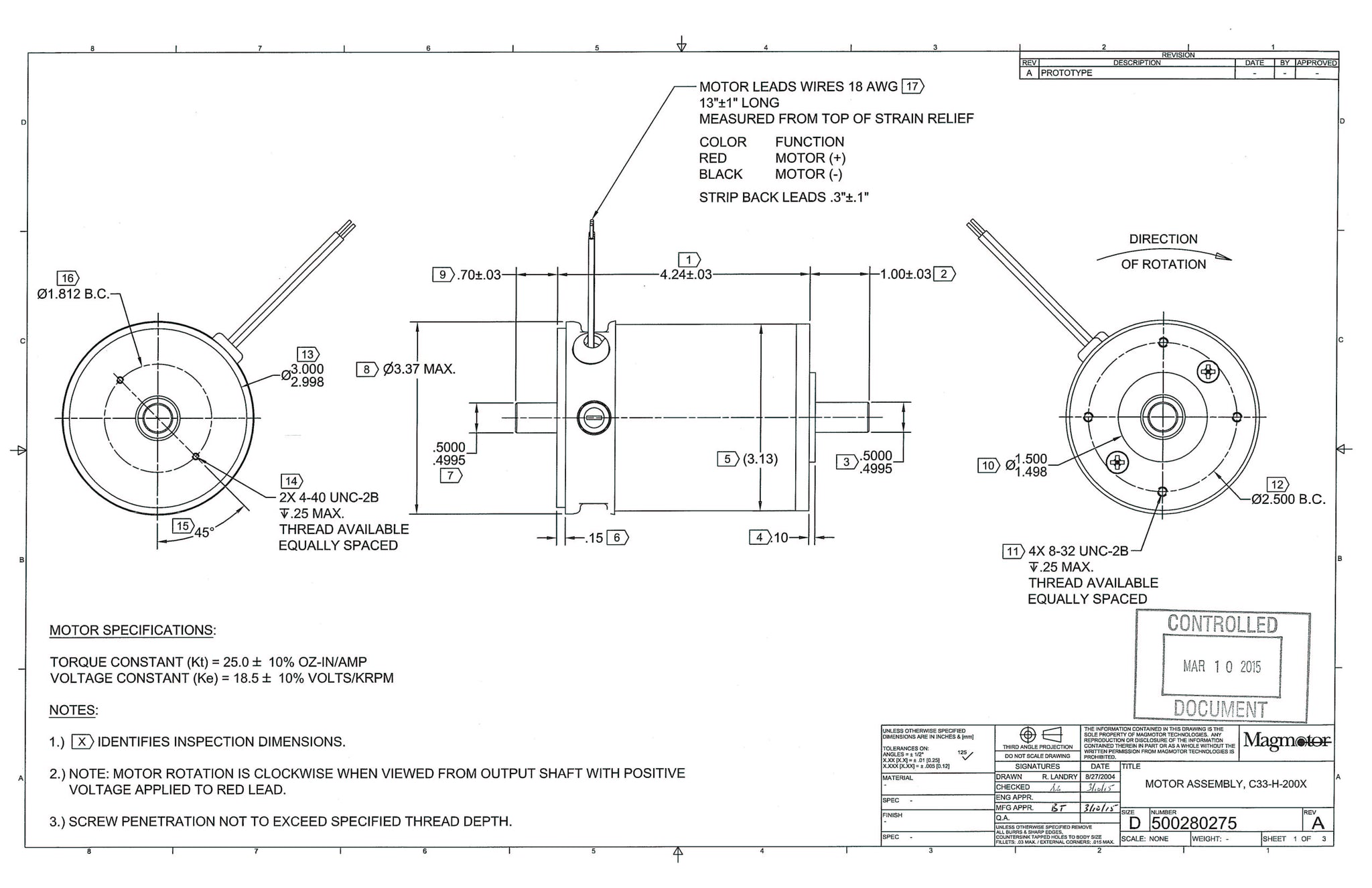

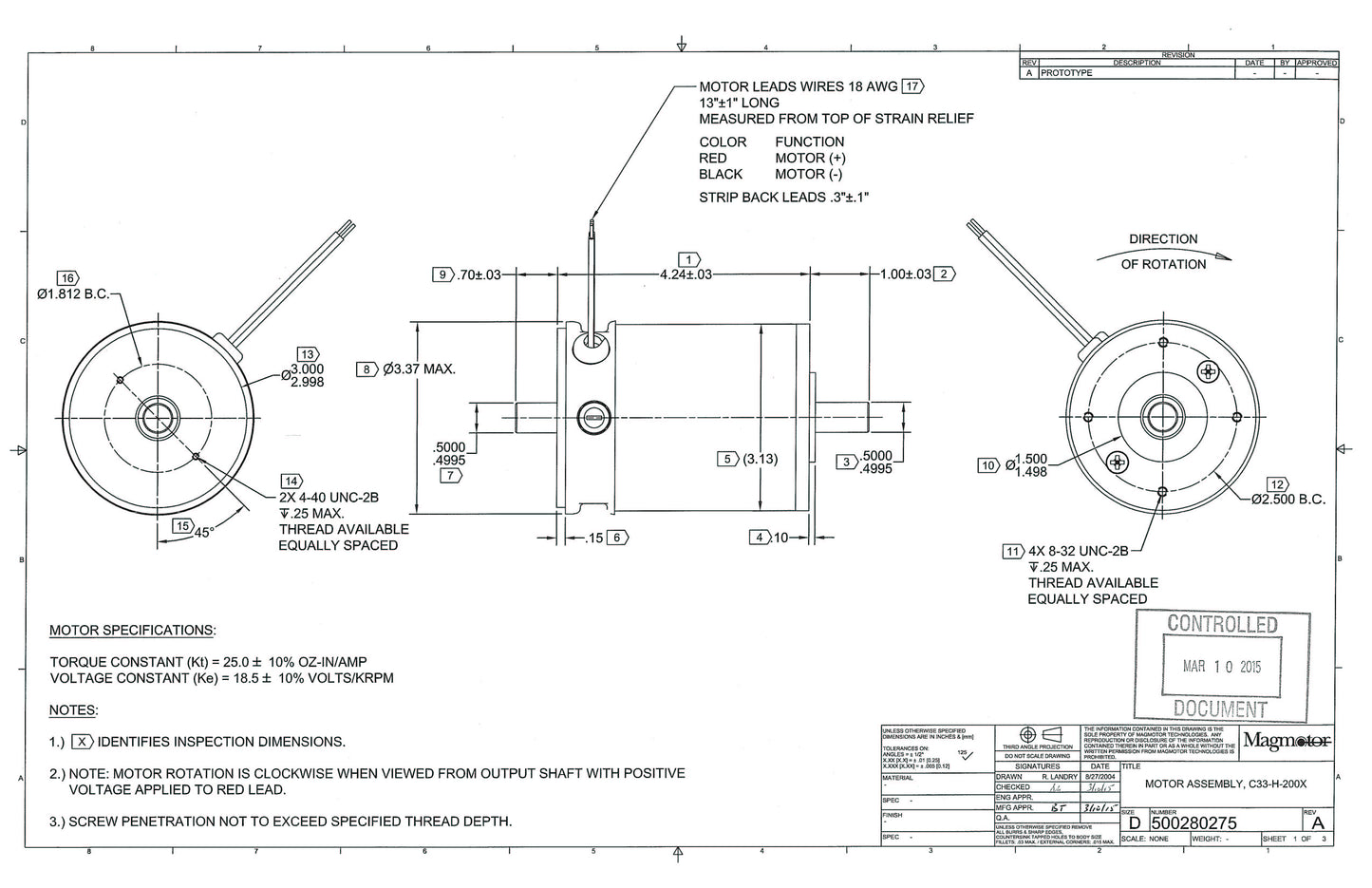

magmotor servo motor drawing with performance sheet PDF download button

 Motor Specifications:
  • 4 Pole - Brushed DC Motor
  • Voltage Constant (Ke) = 18.5 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 25.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1025 rpm @ 24VDC with a continuous torque of 82 oz-in
  • Capable of operating at 1730 rpm @ 36VDC with a continuous torque of 72 oz-in
  • Capable of operating at 2441 rpm @ 48VDC with a continuous torque of 60 oz-in
  • Capable of operating at 3165 rpm @ 60VDC with a continuous torque of 45 oz-in

    This is an Overstock Item - All Sales Are Final
