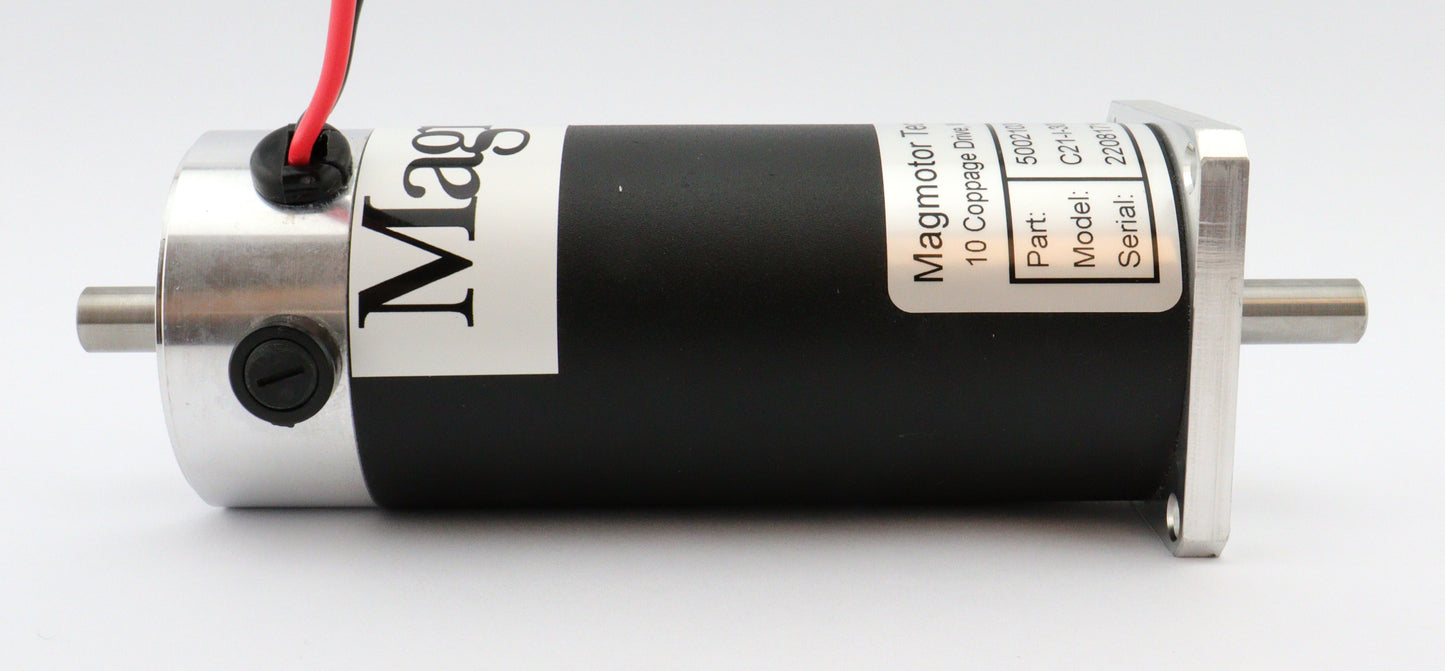

500210362 - BRUSHED MOTOR - 36 to 120 VDC - 26 to 45 oz-in CONT TORQUE - C21-I-300FX

500210362 - BRUSHED MOTOR - 36 to 120 VDC - 26 to 45 oz-in CONT TORQUE - C21-I-300FX

Regular price $292.00
Regular price Sale price $292.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 25.9+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 35.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 894 rpm @ 36VDC with a continuous torque of 45 oz-in
  • Capable of operating at 1380 rpm @ 48VDC with a continuous torque of 43 oz-in
  • Capable of operating at 1865 rpm @ 60VDC with a continuous torque of 41 oz-in
  • Capable of operating at 3100 rpm @ 90VDC with a continuous torque of 34 oz-in
  • Capable of operating at 4347 rpm @ 120VDC with a continuous torque of 26 oz-in
