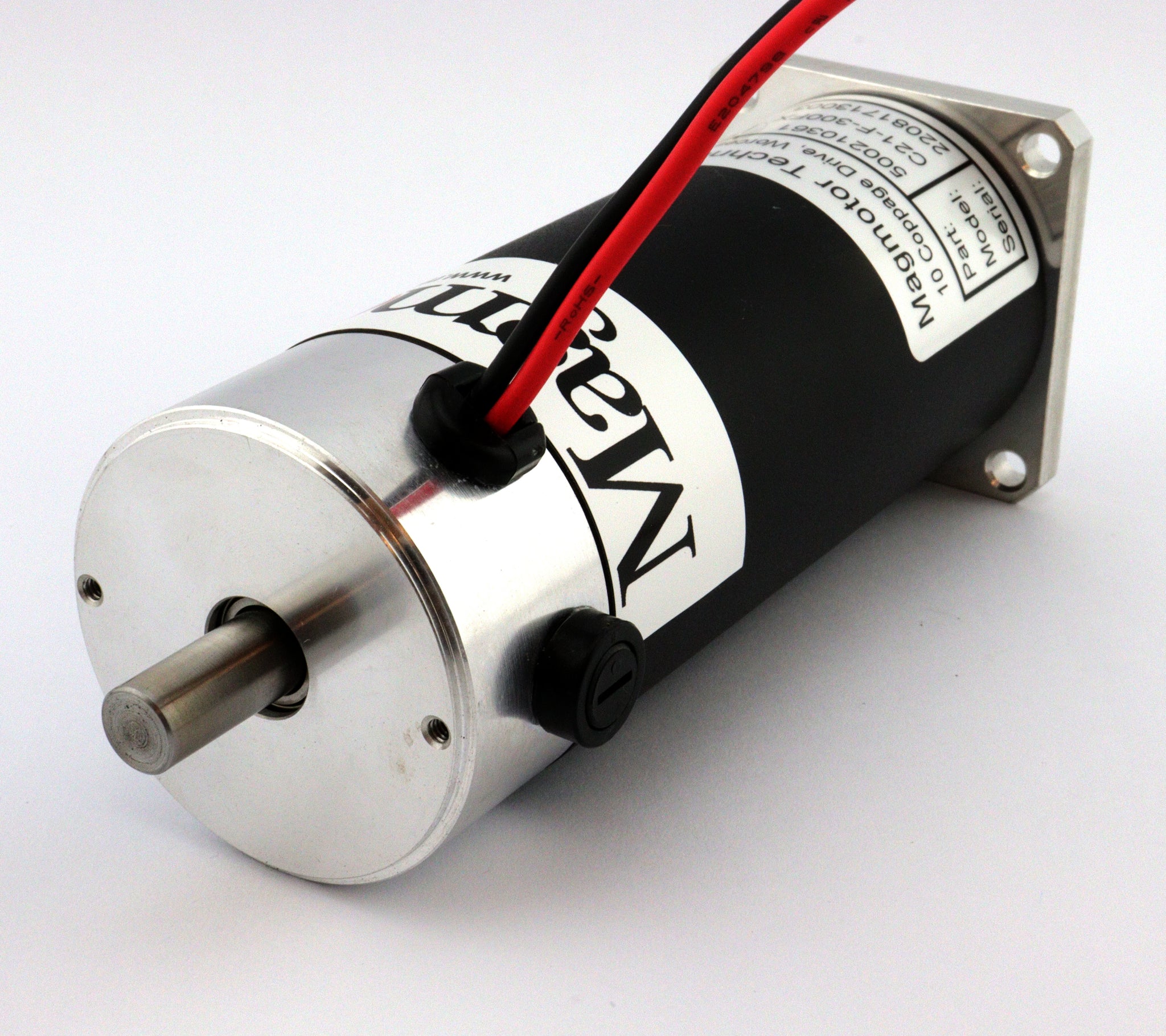

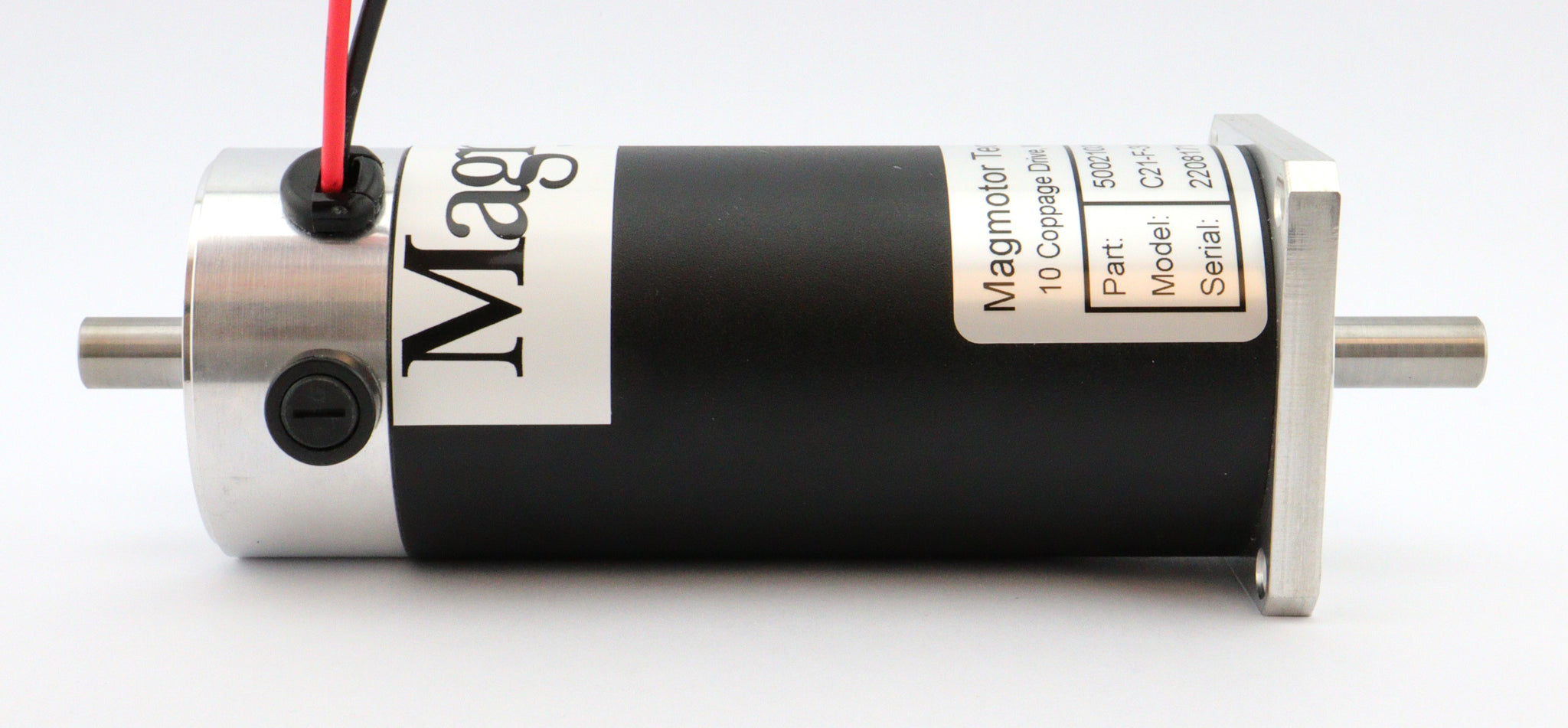

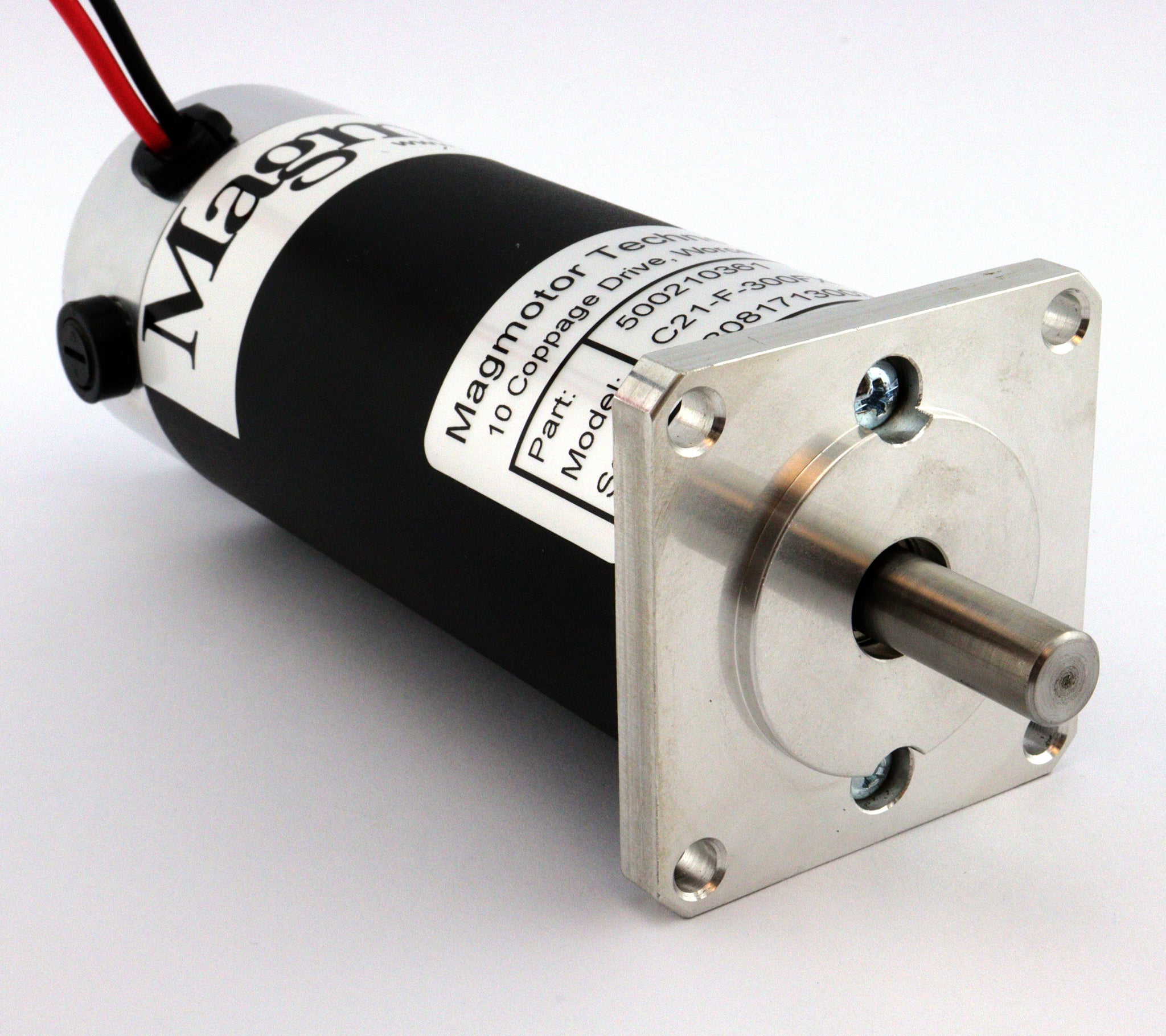

500210361 - BRUSHED MOTOR - 18 to 60 VDC - 34 to 47 oz-in CONT TORQUE - C21-F-300FX

500210361 - BRUSHED MOTOR - 18 to 60 VDC - 34 to 47 oz-in CONT TORQUE - C21-F-300FX

Regular price $292.00
Regular price Sale price $292.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 12.7+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 17.2 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 898 rpm @ 18VDC with a continuous torque of 47 oz-in
  • Capable of operating at 1393 rpm @ 24VDC with a continuous torque of 45 oz-in
  • Capable of operating at 2371 rpm @ 36VDC with a continuous torque of 42 oz-in
  • Capable of operating at 3360 rpm @ 48VDC with a continuous torque of 38 oz-in
  • Capable of operating at 4349 rpm @ 60VDC with a continuous torque of 34 oz-in
