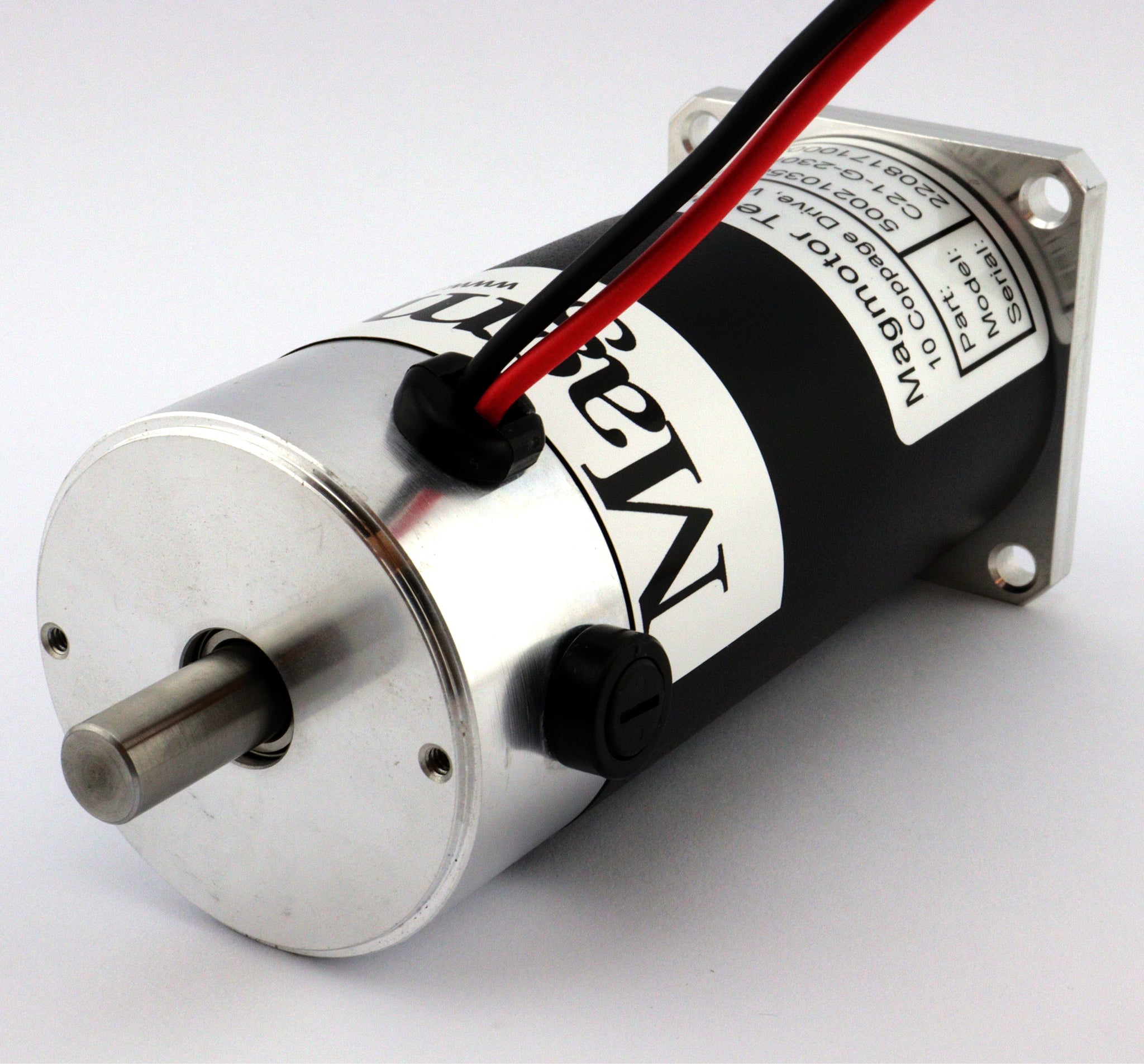

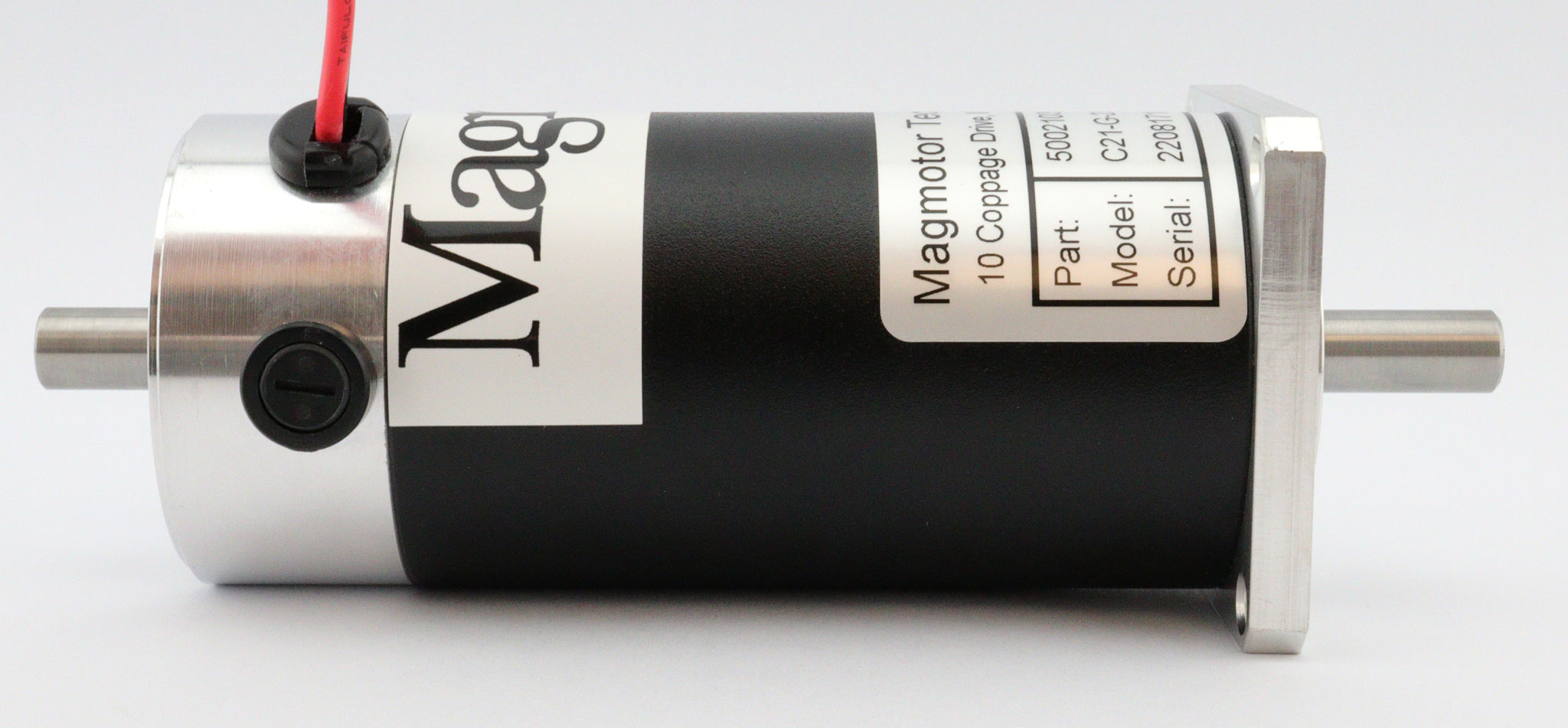

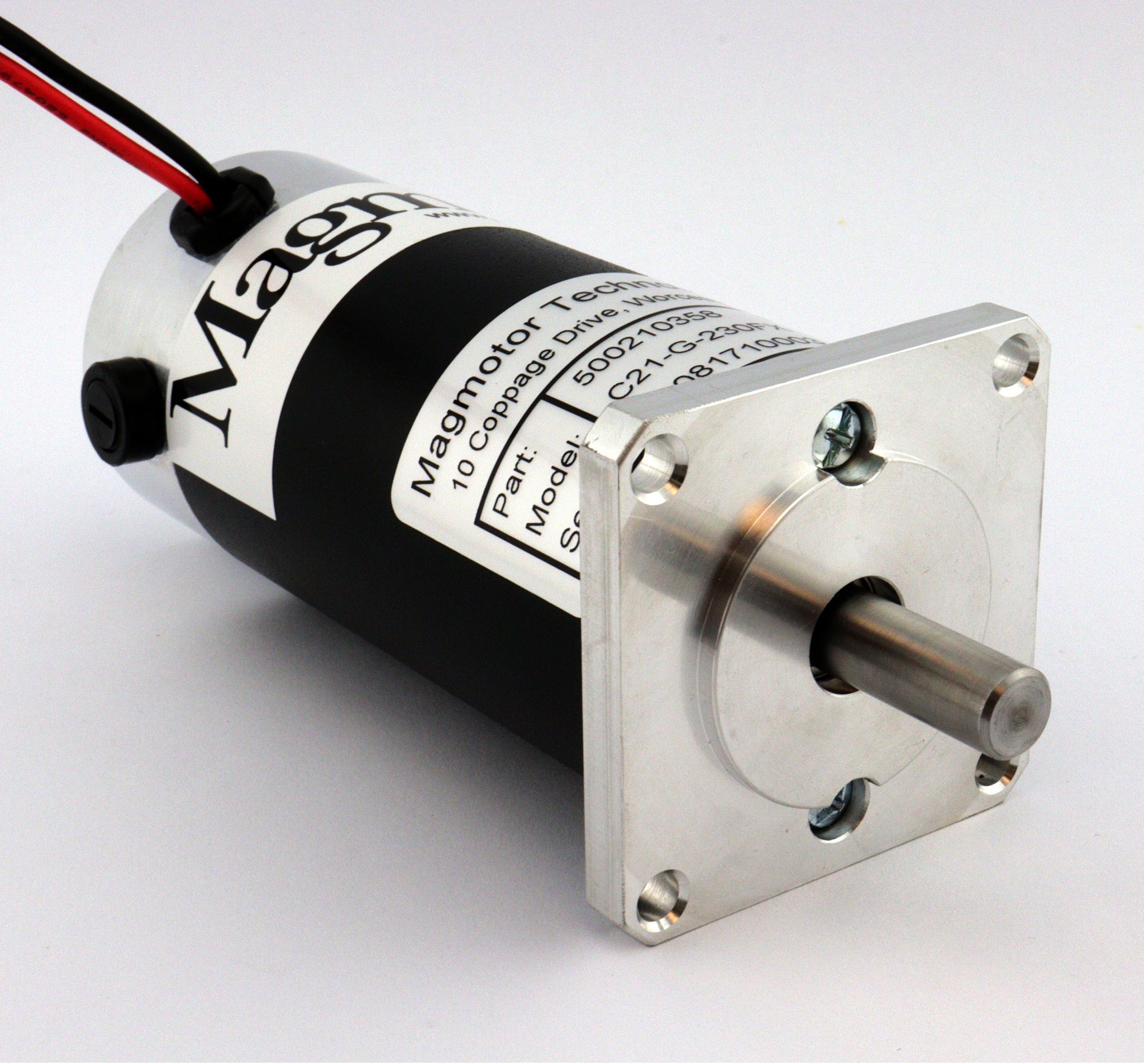

500210358 - BRUSHED MOTOR - 18 to 48 VDC - 29 to 36 oz-in CONT TORQUE - C21-G-230FX

500210358 - BRUSHED MOTOR - 18 to 48 VDC - 29 to 36 oz-in CONT TORQUE - C21-G-230FX

Regular price $276.00
Regular price Sale price $276.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 13.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 17.6 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 755 rpm @ 18VDC with a continuous torque of 36 oz-in
  • Capable of operating at 1251 rpm @ 24VDC with a continuous torque of 34 oz-in
  • Capable of operating at 2210 rpm @ 36VDC with a continuous torque of 32 oz-in
  • Capable of operating at 3185 rpm @ 48VDC with a continuous torque of 29 oz-in
