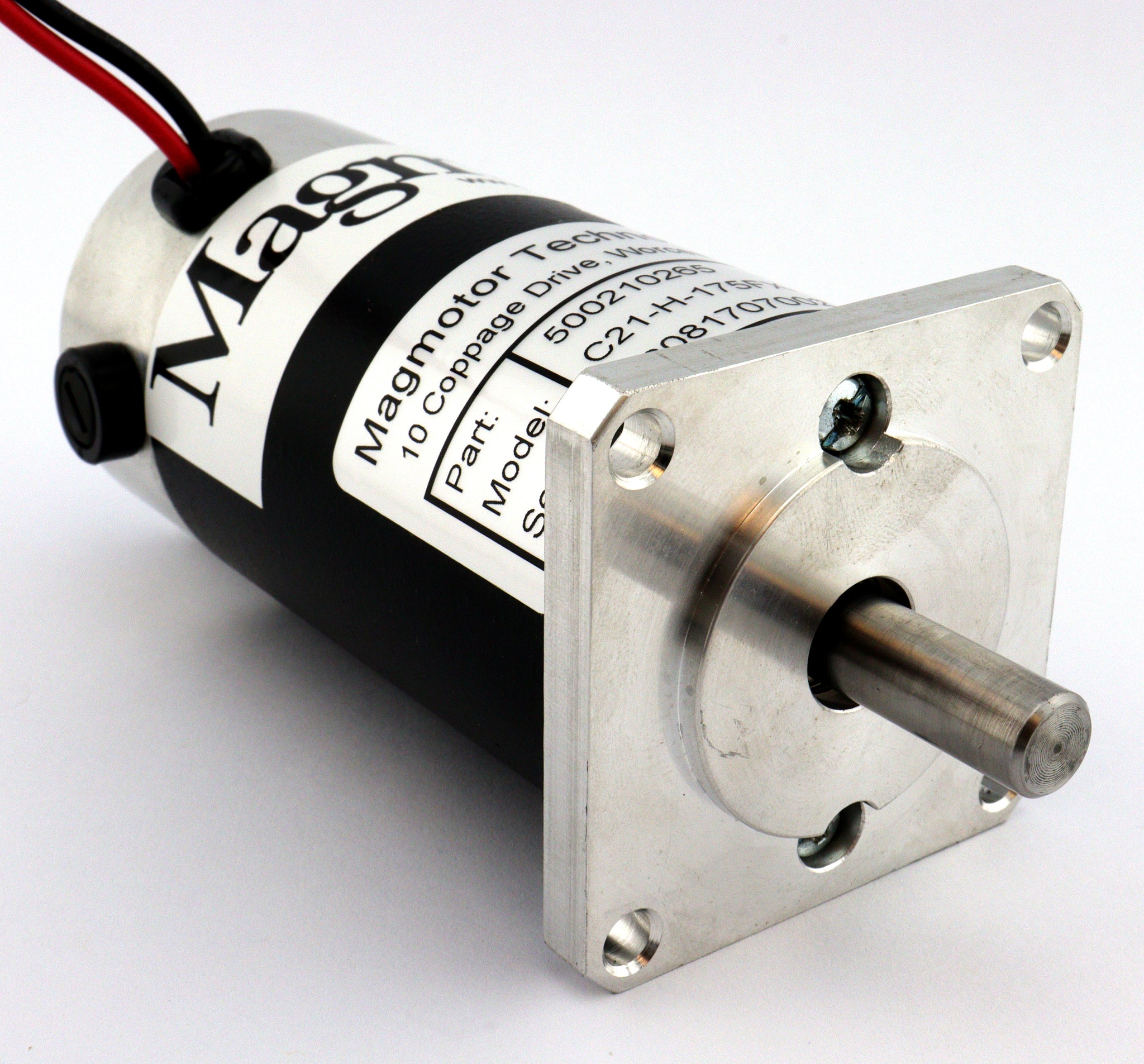

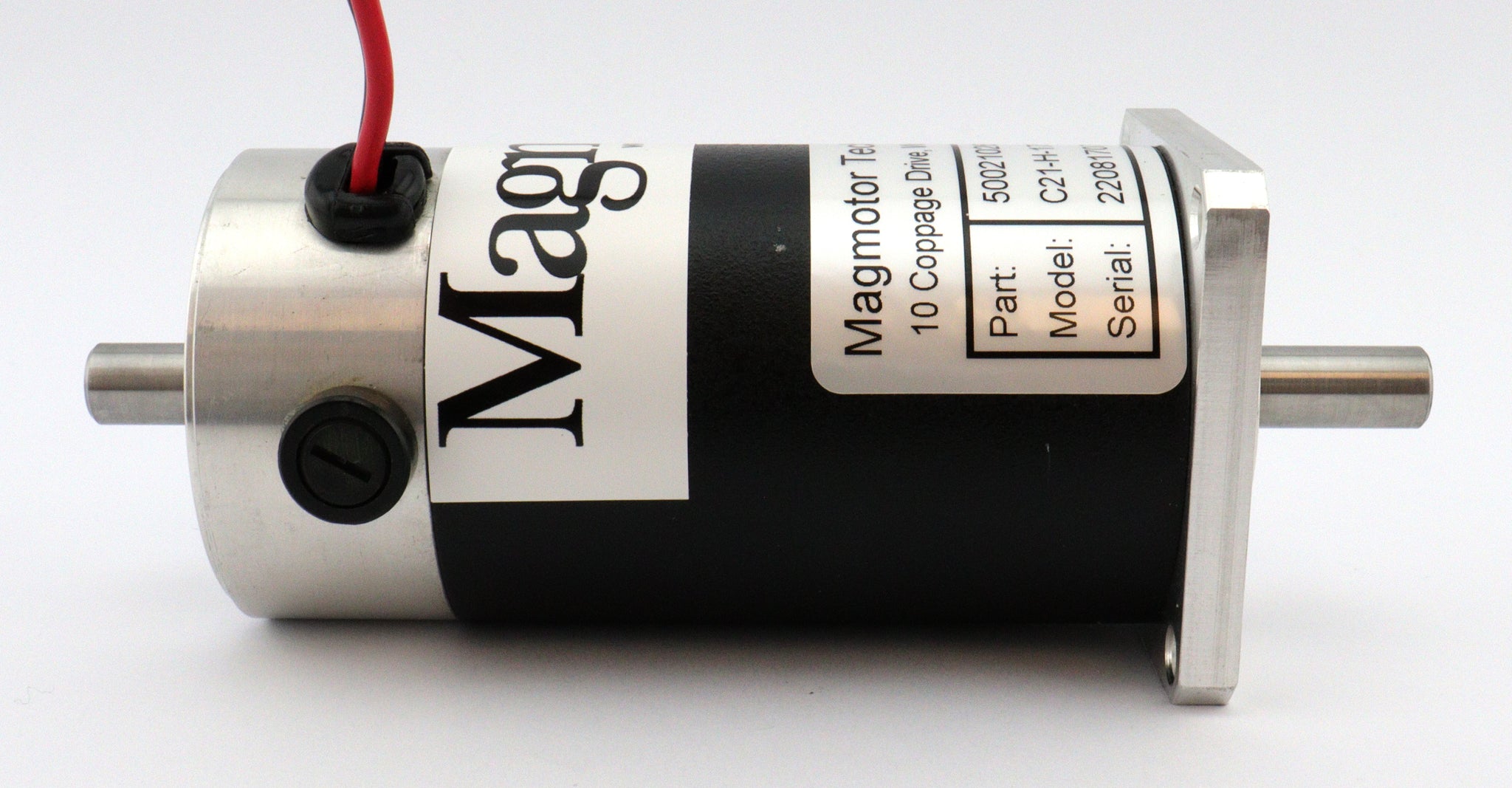

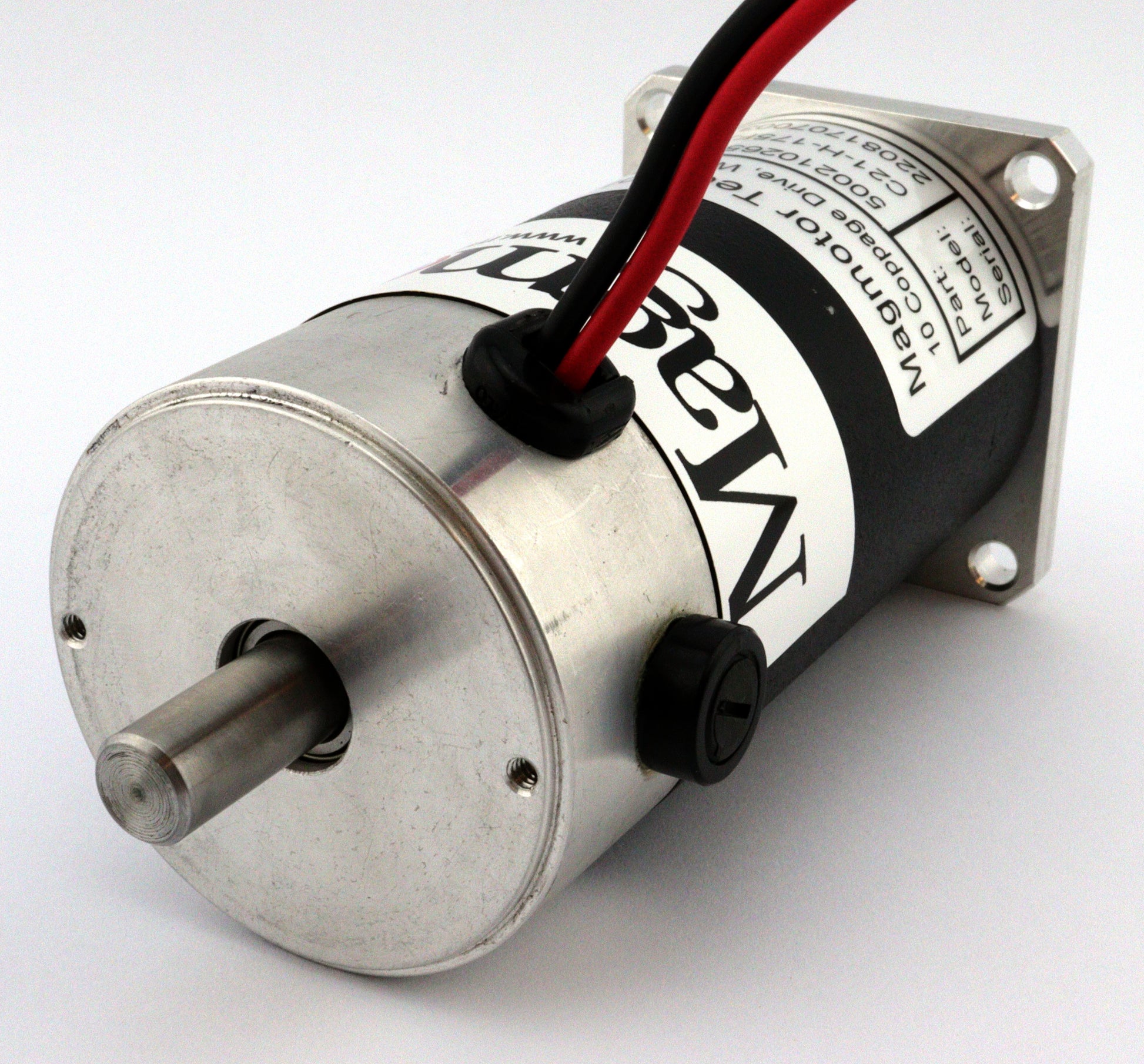

500210265 - BRUSHED MOTOR - 18 to 48 VDC - 20 to 31 oz-in CONT TORQUE - C21-H-175FX

500210265 - BRUSHED MOTOR - 18 to 48 VDC - 20 to 31 oz-in CONT TORQUE - C21-H-175FX

Regular price $263.00
Regular price Sale price $263.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 13.7+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 18.5 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 752 rpm @ 18VDC with a continuous torque of 31 oz-in
  • Capable of operating at 1126 rpm @ 24VDC with a continuous torque of 29 oz-in
  • Capable of operating at 2175 rpm @ 36VDC with a continuous torque of 25 oz-in
  • Capable of operating at 3141 rpm @ 48VDC with a continuous torque of 20 oz-in
