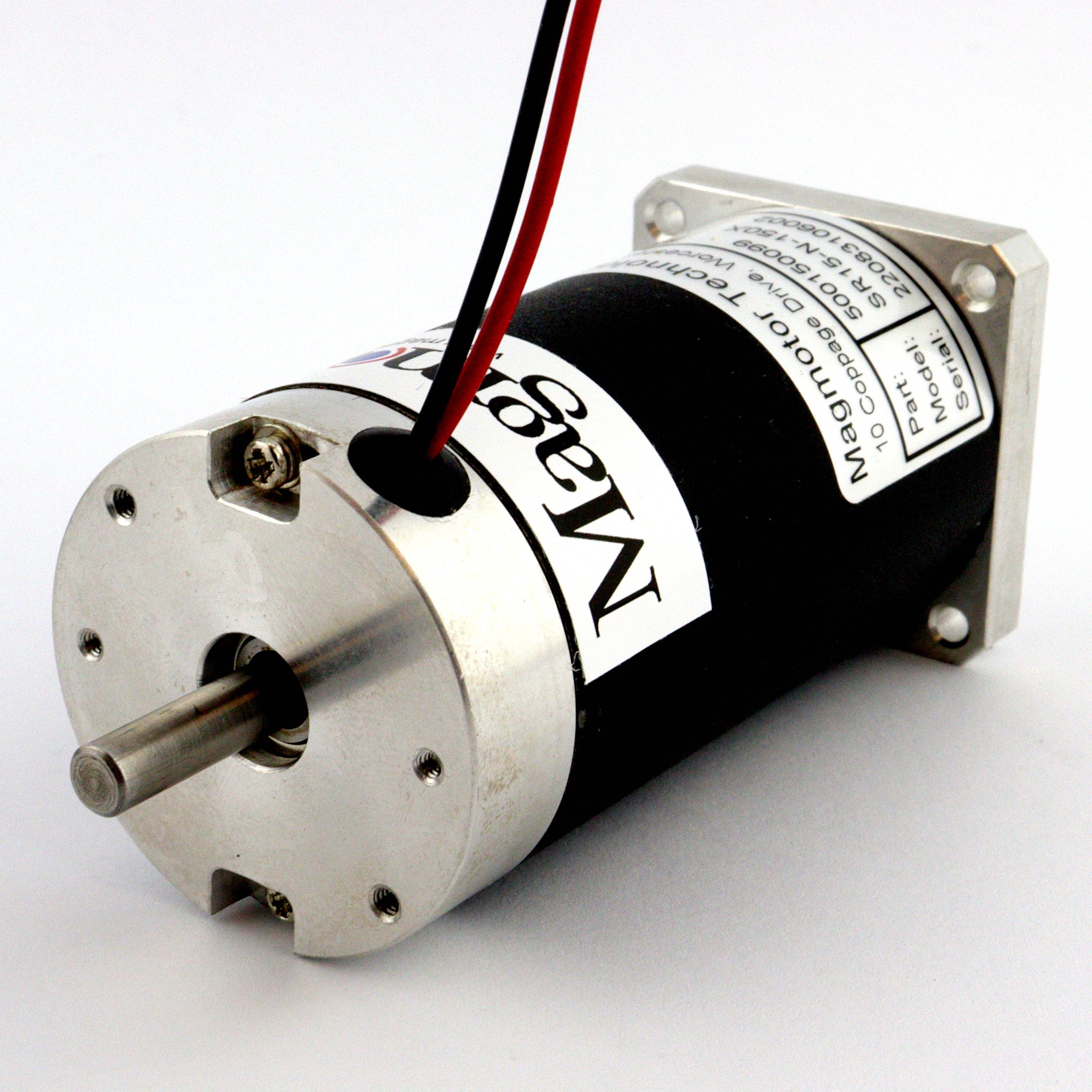

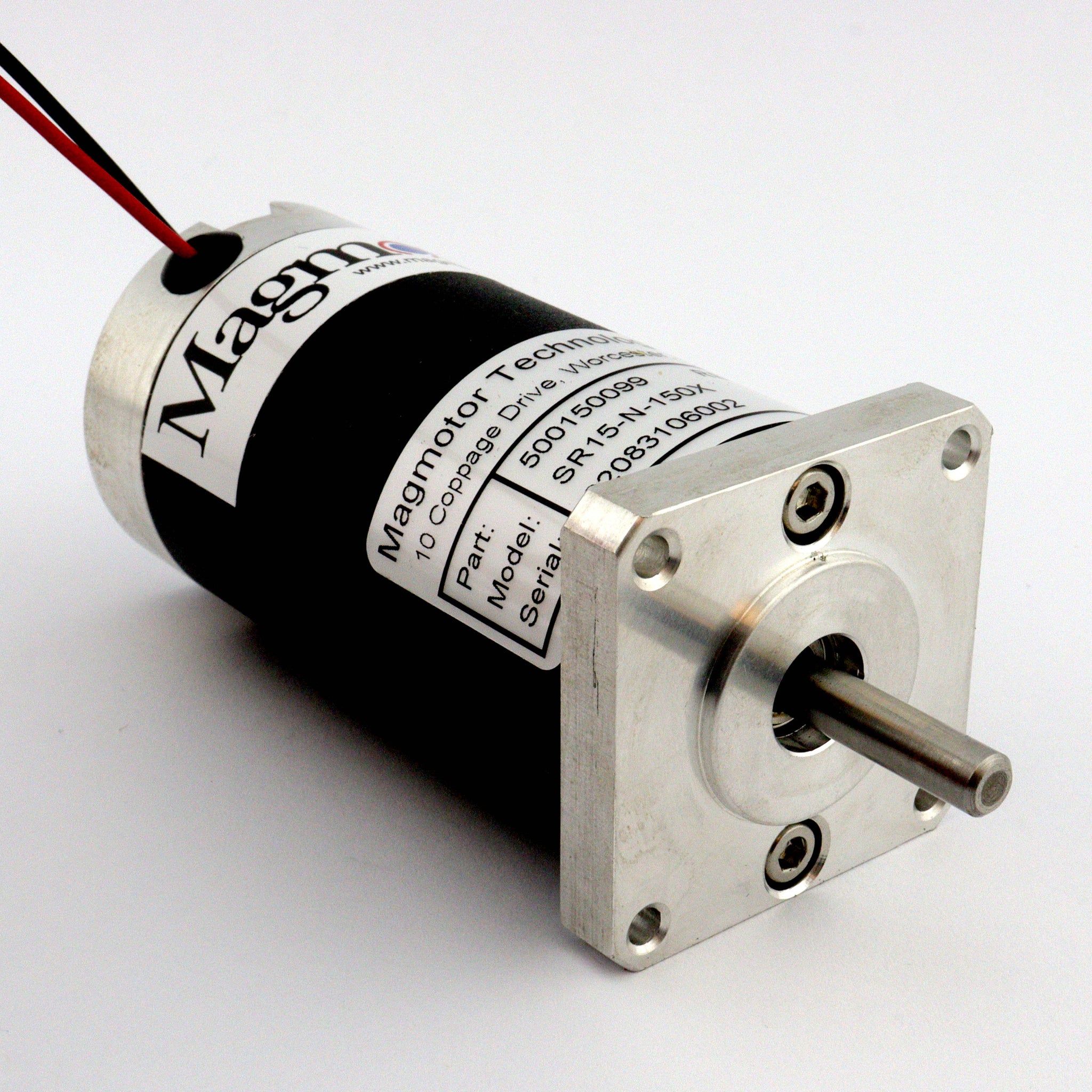

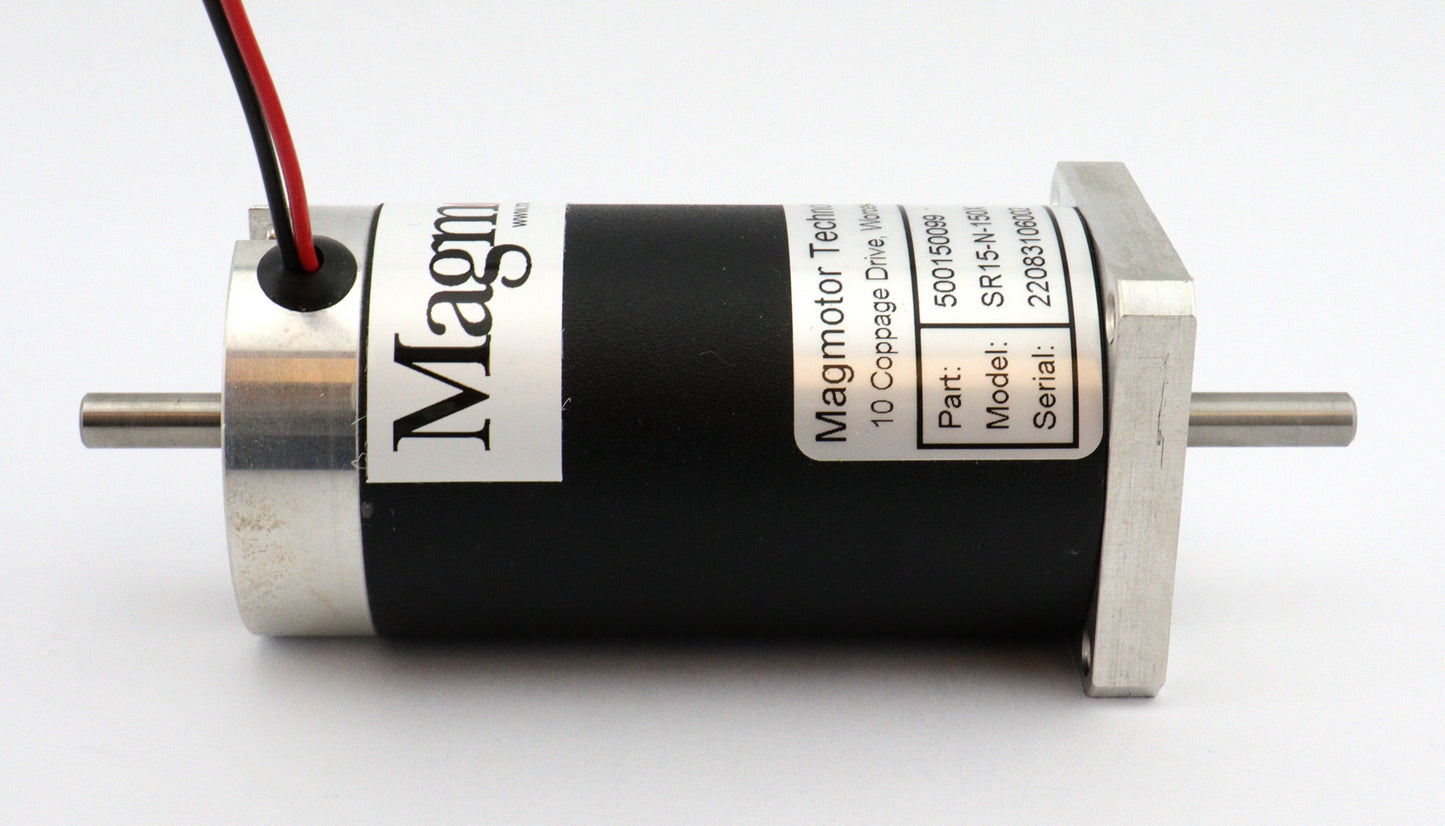

500150099 - BRUSHED MOTOR - 9 to 18 VDC - 12 to 14 oz-in CONT TORQUE - SR15-N-150FX

500150099 - BRUSHED MOTOR - 9 to 18 VDC - 12 to 14 oz-in CONT TORQUE - SR15-N-150FX

Regular price $245.00
Regular price Sale price $245.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 4.17+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 5.60 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 819 rpm @ 9VDC with a continuous torque of 14 oz-in
  • Capable of operating at 1634 rpm @ 12VDC with a continuous torque of 13 oz-in
  • Capable of operating at 3168 rpm @ 18VDC with a continuous torque of 12 oz-in
