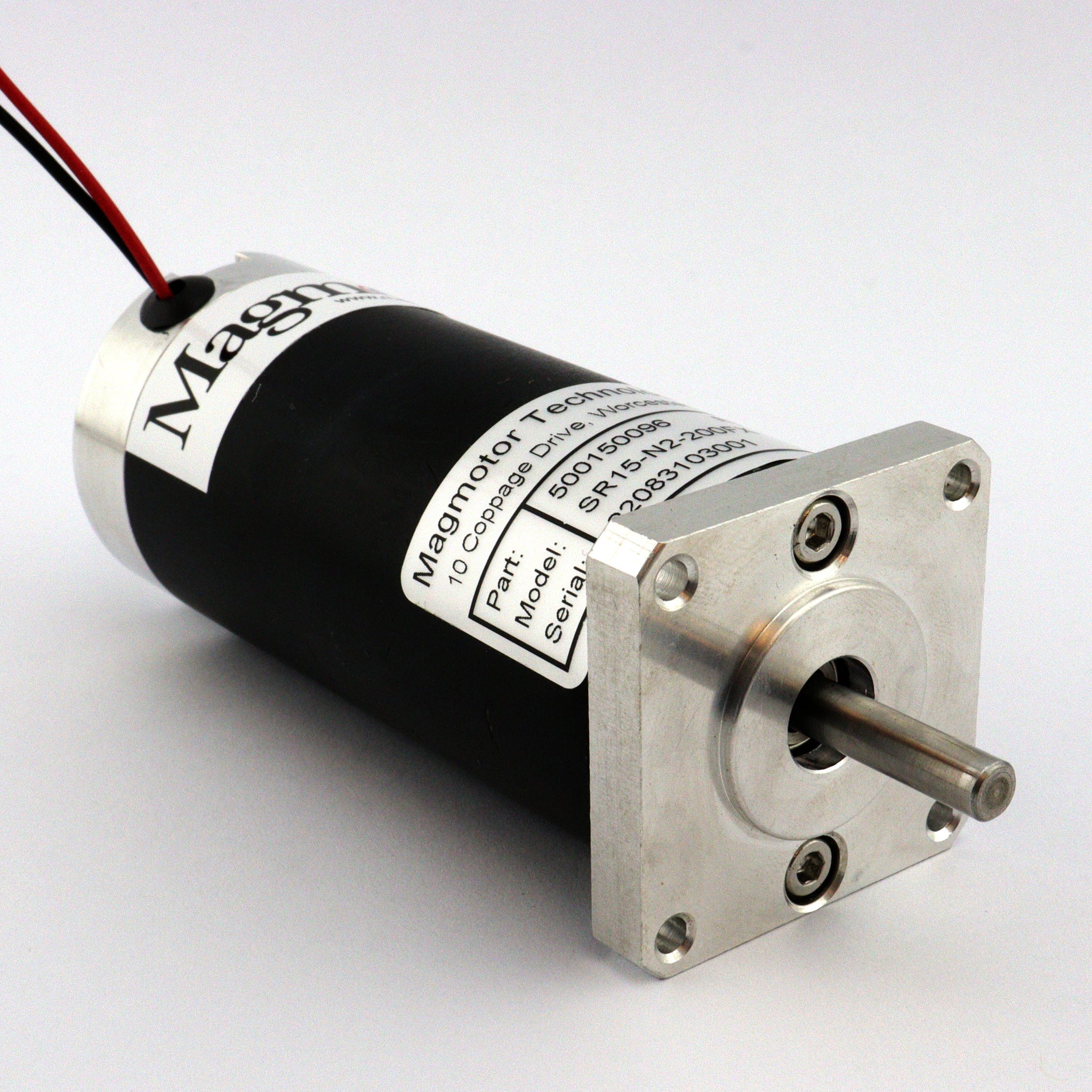

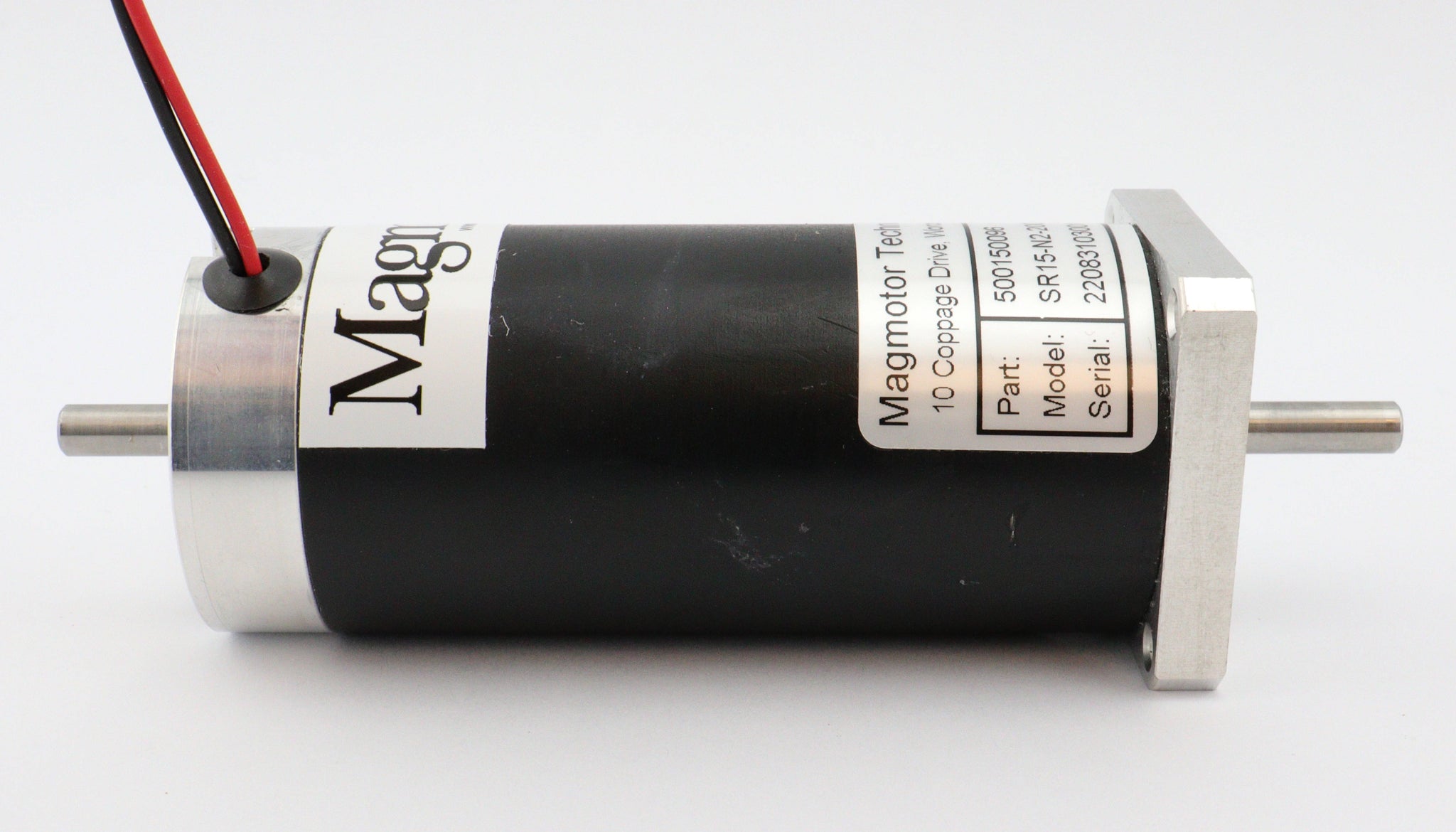

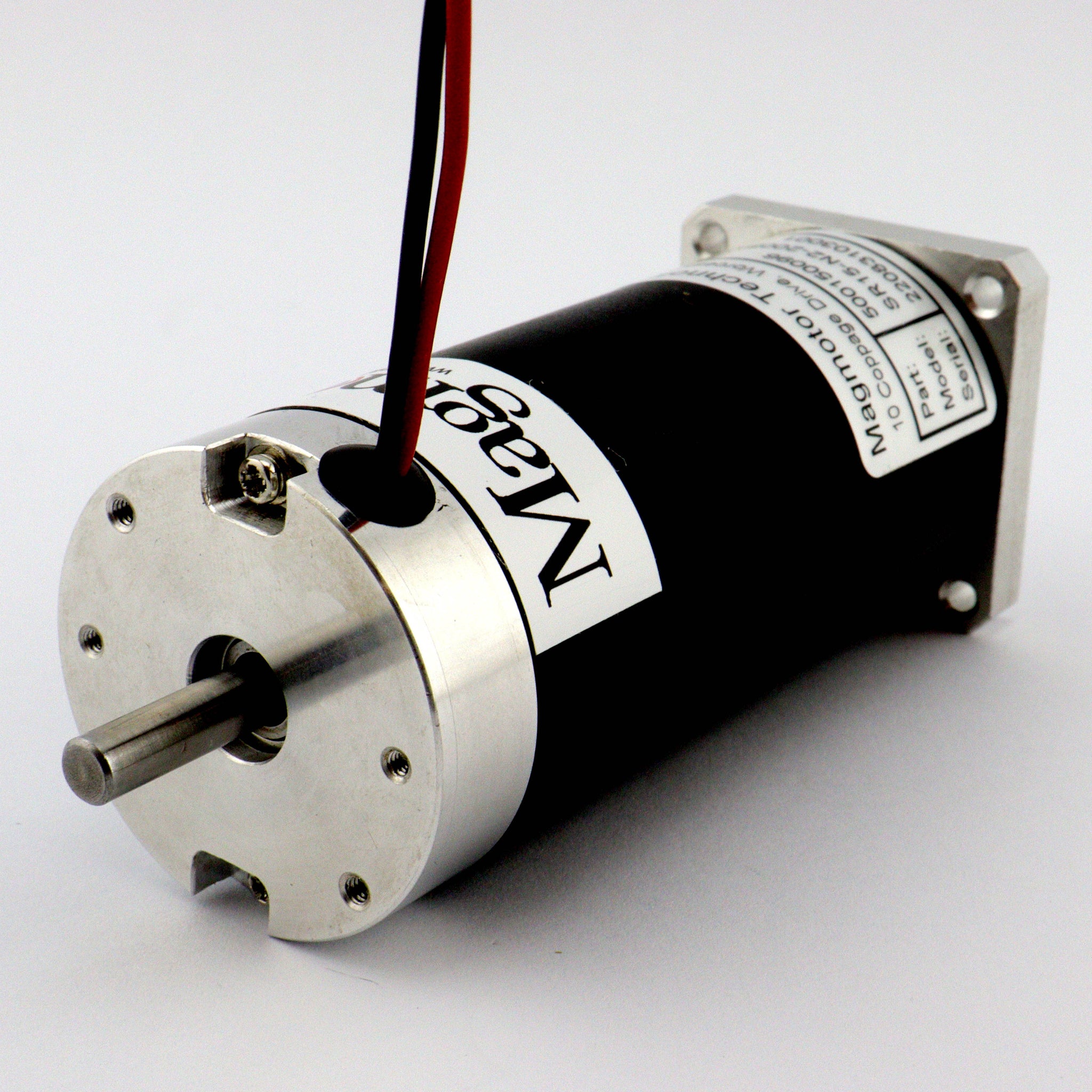

500150096 - BRUSHED MOTOR - 6 to 12 VDC - 16 to 19 oz-in CONT TORQUE - SR15-N2-200FX

500150096 - BRUSHED MOTOR - 6 to 12 VDC - 16 to 19 oz-in CONT TORQUE - SR15-N2-200FX

Regular price $257.00
Regular price Sale price $257.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 2.8+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 3.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 938 rpm @ 6VDC with a continuous torque of 19 oz-in
  • Capable of operating at 2076 rpm @ 9VDC with a continuous torque of 17 oz-in
  • Capable of operating at 3214 rpm @ 12VDC with a continuous torque of 16 oz-in
