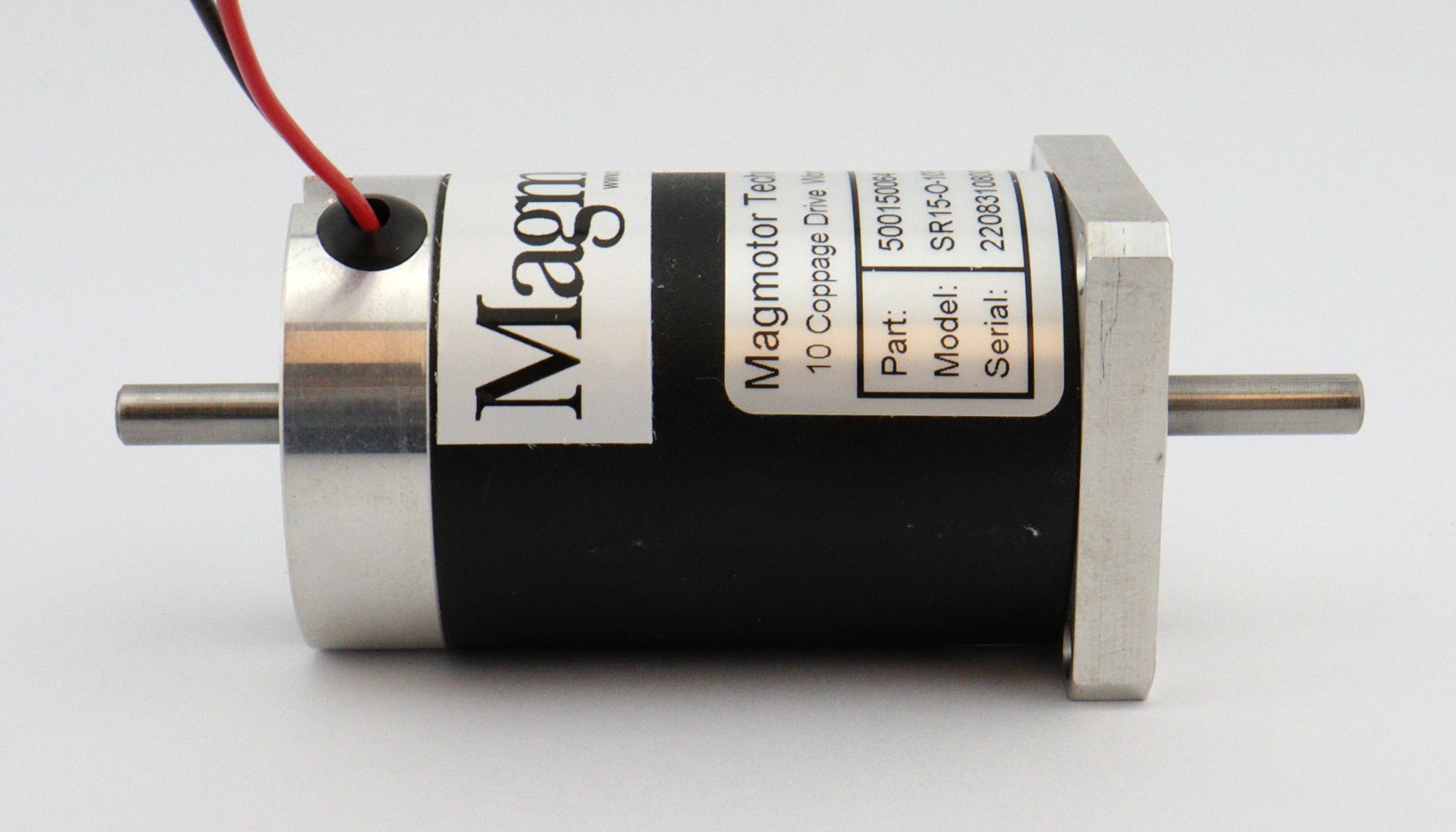

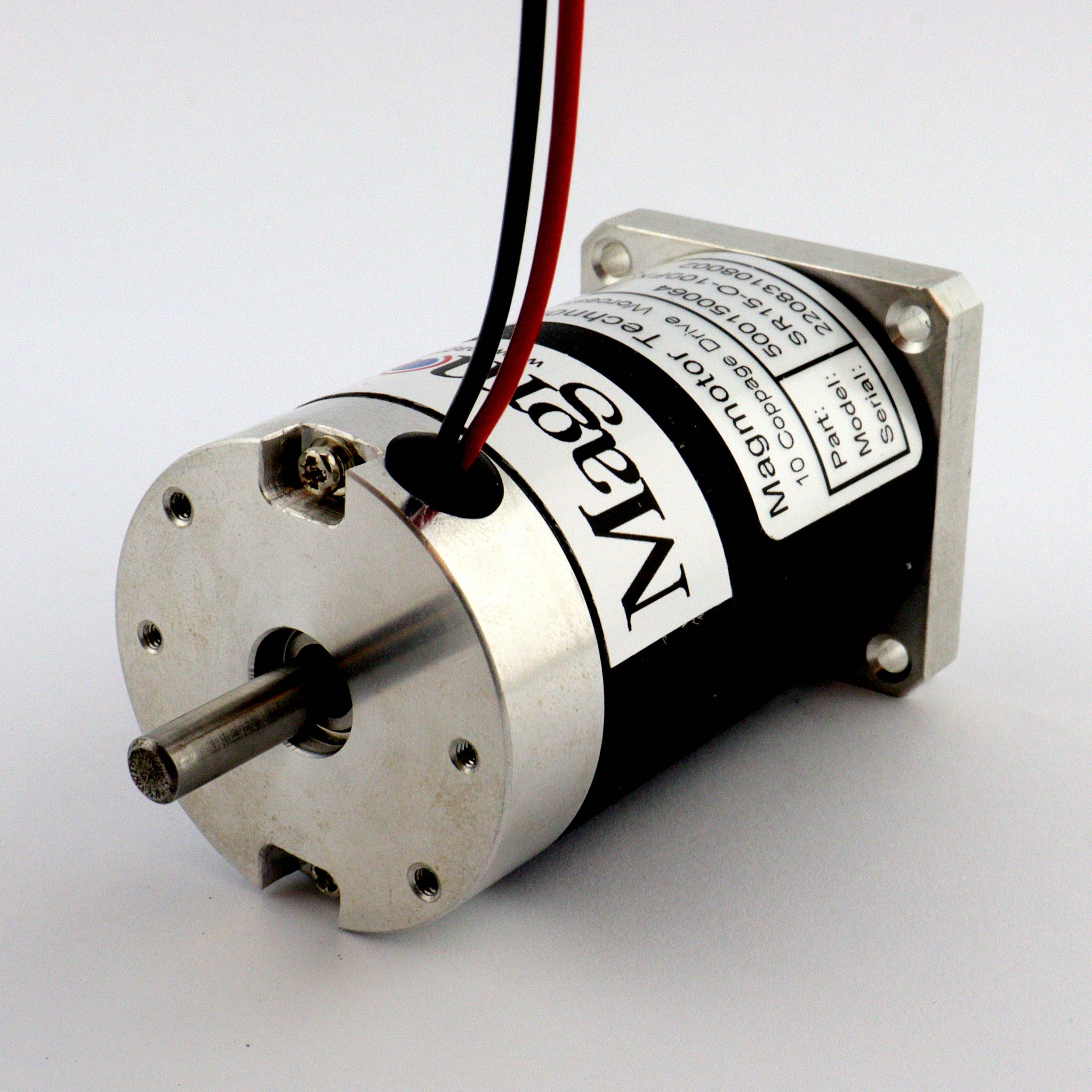

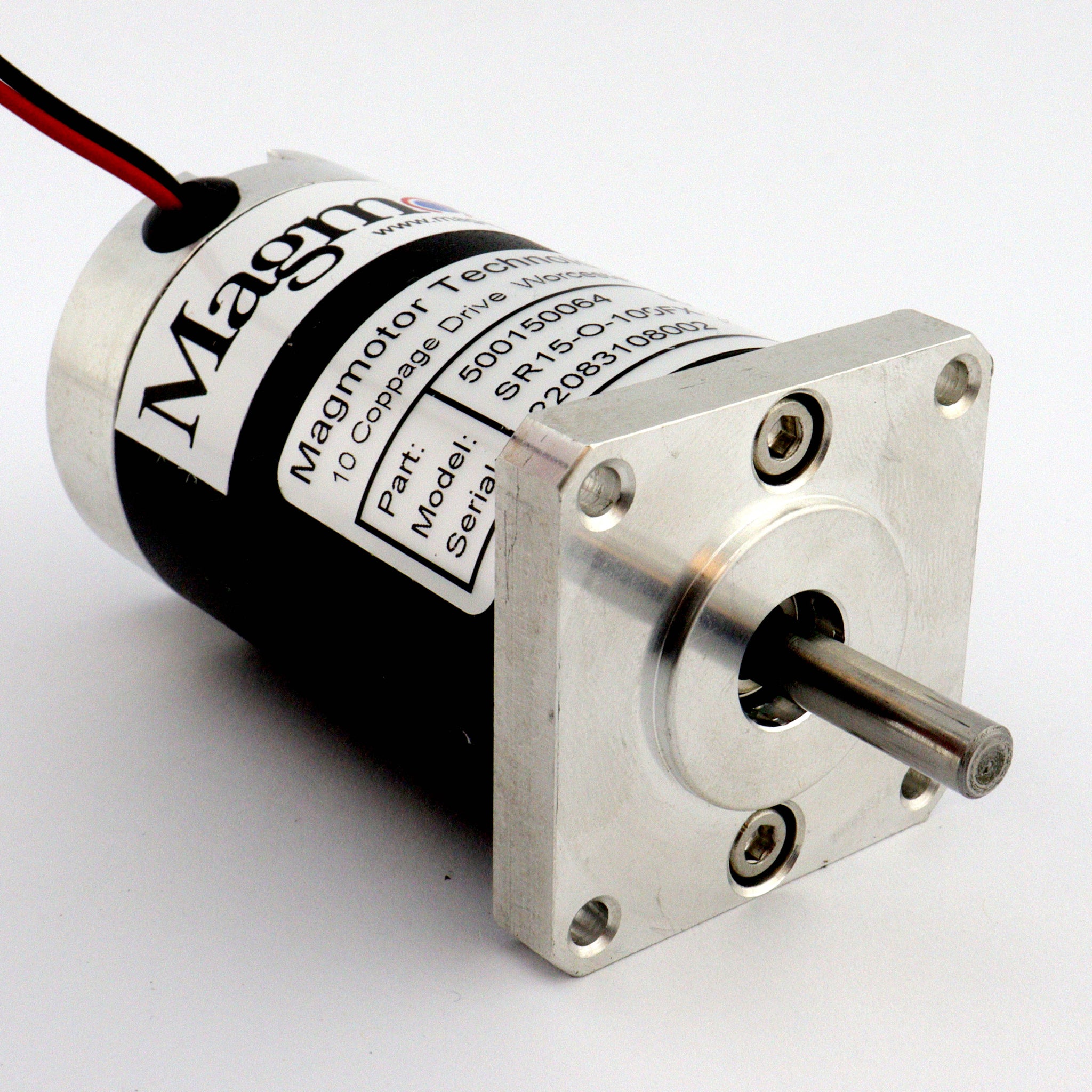

500150064 - BRUSHED MOTOR - 9 to 18 VDC - 7 to 9 oz-in CONT TORQUE - SR15-O-100FX

500150064 - BRUSHED MOTOR - 9 to 18 VDC - 7 to 9 oz-in CONT TORQUE - SR15-O-100FX

Regular price $232.00
Regular price Sale price $232.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 3.85+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 5.20 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 946 rpm @ 9VDC with a continuous torque of 9 oz-in
  • Capable of operating at 1880 rpm @ 12VDC with a continuous torque of 8 oz-in
  • Capable of operating at 3593 rpm @ 18VDC with a continuous torque of 7 oz-in
